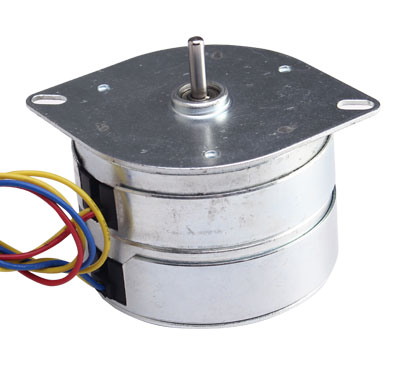

- 600TM Series Synchronous Motors
Operation at 50Hz and 60Hz. They are working voltage of 24, 115 or 230 V. They are of simply design ,
constant speed , long life span , can be coupled to gearbox for different application . like revolving
advertising displays , power-operated valves , pump , automation industry general .
Type TM600-SM6446RG Dimensions (mm) 64*46 Pole number 16 Voltage (V) 24 , 115 , 230 Speed (rpm) 375rpm/50Hz 450rpm/60Hz Power output (W) 12W/50Hz 16W/60Hz Output torque (g.cm) 900g.cm/50Hz 100g.cm/60Hz No-load current (mA) 500mA/50Hz 620mA/60Hz Temperature range -10 +55 Life span 5000 Hour
Model voltage frequency rated
currentpower speed rated
torquerunning
directionstart
capacitorweight V AC Hz mA W rpm Kg.cm CW/CCW uf/V g TM600-375A-24 24 50 400 12 375 0.8 CW/CCW 30 400 TM600-375A-110 110 50 140 12 375 0.8 CW/CCW 1.5 400 TM600-375A-220 220 50 60 12 375 0.8 CW/CCW 0.33 400 TM600-375A-24-L 24 50 500 17 375 1.2 CW/CCW 30 450 TM600-375A-110-L 110 50 200 17 375 1.2 CW/CCW 2 450 TM600-375A-220-L 220 50 90 17 375 1.2 CW/CCW 0.33 450
