  • 57BYG

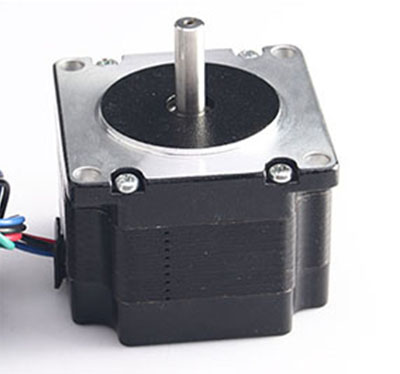

57BYG

< >

57BYG

Category: Motor Paso A Paso
Clicks: 6597
Release date: 2018-12-04 15:51:29
[Close]
  • Technique Parameter
    Step Angle Accuracy ±5% （Full Step,No Load）
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
     Temperature Rise 80℃Max.（rated current,2phase on）
    Ambient Temperature - 10℃- +50℃
    Insulation Resistance 100MΩMin.500VDC
     Dielectric Strength 500VAC for one minute
     Shaft Radial Play 0.06Max.(450g-load)
     Shaft Axial Play 0.08Max.(450g-load)
    Technique Specification
    Model No.

    Rated

    Voltage

    		Current
    /Phase     		Resistance
    /Phase     		Inductance
    /Phase

    Holding

    Torque

    		#Of Leads

    Rotor

    Inertia

    		Weight Length
    Single Shaft V A Ω mH Oz-in kg-cm   g-cm2 Kg mm
    57H41H-1006A 5.7 1.0 5.7 5.4 55.0 3.9 6 120 0.47 41
    57H41H-2006A 2.8 2.0 1.4 1.4 55.0 3.9
    57H41H-2804A 2.0 2.8 0.7 1.4 76.0 5.5 4
    57H51H-1006A 6.6 1.0 6.6 8.2 100 7.2 6 275 0.65 51
    57H51H-2006A 3.3 2.0 1.65 2.2 100 7.2
    57H51H-2804A 2.3 2.8 0.83 2.2 140 10.1 4
    57H56H-1006A 7.4 1.0 7.4 10 125 9.0 6 300 0.7 56
    57H56H-2006A 3.6 2.0 1.8 2.5 125 9.0
    57H56H-2804A 2.5 2.8 0.9 2.5 175 12.6 4
    57H76H-1006A 8.6 1.0 8.6 14 187 13.5 6 480 1.0 76
    57H76H-2006A 4.5 2.0 2.25 3.6 187 13.5
    57H76H-2804A 3.2 2.8 1.13 3.6 263 18.9 4
    The last letter A-Single shaft and B-Double shaft
