  • Description:

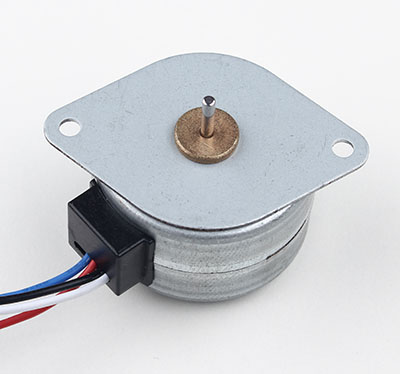

    The the 35BY permanent magnet stepper motor has a simple mechanism, low noise, speed adjustable, long life characteristics. Widely used in the banking and office equipment, telecom equipment, printers, copiers, fax machines, scanners, textile machinery, medical, automatic control, building automation valves, massage chairs and stage lighting, automotive, surveillance systems, electric advertising, electric curtains, science and education equipment, air conditioning and other fields.
    Technical parameters

    Model

    35BY

    Number of phases

    4-1-2

    4-2

    2-2

    Step Angle(°)

    7.5/3.75

    15/7.5

    15/7.5

    Rated voltage(DCV)

    24

    12

    5

    DC Resistance(Ω)

    300

    150

    40

    No-load pull -in

    frequency(PPS)

    ≧500

    No-load pull out

    frequency(PPS)

    ≧700

    Pull-in

    torque(g.cm)

    35-50(200pps)

    Self-positioning

    Torque(g.cm)

    ≦50

    Coil temperature

    rise(K)

    ≦40

    Noise(db)

    ≦40
