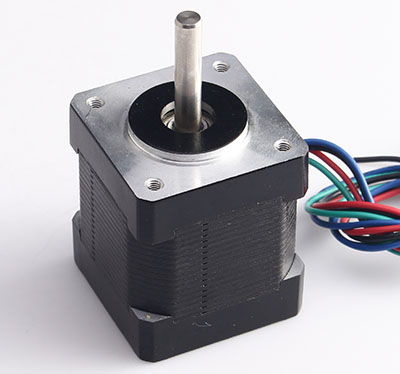

  • 35BYGH0.9° stepper motor
    Technique Parameter
    Step Angle Accuracy ±5% (Full Step,No Load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃Max.(rated current,2phase on)
    Ambient Temperature - 10℃- +50℃
    Insulation Resistance 100MΩMin.500VDC
    Dielectric Strength 500VAC for one minute
    Shaft Radial Play 0.06Max.(450g-load)
    Shaft Axial Play 0.08Max.(450g-load)
    Technique Specification
    Model Number

    Rated

    voltage

    Current

    /phase

    Resistance

    /phase

    Inductance

    /phase

    Holding torque leads Rotor inertia weight L
    Single Shaft V A Ω mH Oz-in g-cm   g-cm2 Kg mm
    35H20HM-0404A(B) 10 0.4 25 18.5 7 500 4 8 0.1  20
    35H26HM-0804A(B) 3.8 0.8 4.8 4.3 11 800 4 10 0.12 26
    35H28HM-0754A(B) 3.2 0.75 4.3 4.3 11 800 4 10 0.14 28
    35H28HM-0504A(B) 10 0.5 20 18 14 1000 4 10 0.14 28
    35H34HM-0406A(B) 10 0.4 25 16 17 1200 6 14 0.17 34
    35H36HM-1004A(B) 2.7 1.0 2.7 4.3 19 1400 4 14 0.18 36
    The last letter A-single shaft,B-Double shaft.
