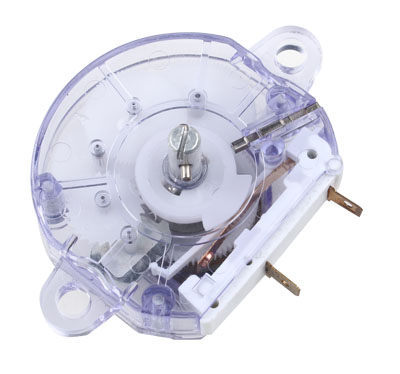

Fan-timer
- Specification:
Application:Mechanical component timer is key of electric fan .It can limit the operating time of fan within certain selection .Rated Voltage 220V/110V Frequency 50 Hz or 60Hz Current 10A/20A Operating Temperature Range -10°C ~ +55°C Setting Direction Clockwise Operating Torque < 0.5N.m Insulation Resistance > 100MΩ Withstand Voltage 1500V ~ /min Time Setting Range 180min±15%. Fully Pass Range 0° ~ 45°Counter Clockwise Longevity Above 10000 times
When settled time is up. the power will be off automatically and operating stopped. Mainly used for timing of Fanner,
Heater (Fireplace),and other home appliances.
Contour diagram:
FEATURE:
DFJ-A mechanical timer is designed as plastic and steel structure. It has the advantages of novel structure.
Exact time-operating and convenient used and in staling.
Main Technique Data:
Time limitation 180±27min
Insulation resistance: not less than 100M
No break down and scintillation will be taken place while testing under 1500V .50HZ for 1 min
Natural service life: more than 10000 times.
Measure: 76mm*60mm*50mm (refer to Overall Dimensions)
Weight : less than 50g
Remarks
1.Colour & length of conducting wire can be made according to the requirement of users2。
2.The output shaft can be made according to the consumers need
3.Working voltages and frequencies can be made as per users' requirements
